A shelf does its job in the dark. But a shelf with a routed LED channel does something else entirely: it turns a wall into a feature. Whether you're after ambient glow in a living room, task lighting above a kitchen counter, or that backlit bar effect without building out a full back bar, LED lighting on a floating shelf is one of the highest-impact upgrades you can make for $50.
That $50 is a flat fee. It covers the LED channel routing on any shelf, any species, any size. But before you order, there are a few things worth understanding about how the channel works, where to position it, and what specs you need to have ready. If you're browsing options, the LED floating shelves collection is a good starting point.
Up, Down, or Both: Choosing Your Channel Position
This is the first decision and the one that shapes everything else. The channel is routed directly into the face of the shelf before finishing, so position is locked in once the shelf is made.
Up lighting means the channel is routed into the top face of the shelf, set back from the front edge. Light washes upward against the wall behind the shelf. This works well for accent lighting, highlighting art or objects displayed above, or adding ambient light to a room without a visible source. It's the subtler of the two options: the light itself is hidden, and what you see is the glow on the wall.
Down lighting routes the channel into the bottom face. Light projects downward onto whatever surface sits below the shelf. This is your task lighting option: countertops, desks, nightstands, bar tops. It also creates a floating effect where the shelf appears to glow from underneath, which reads well in darker rooms and moody spaces.
Both is possible on the same shelf. Two channels, one top and one bottom, each routed to your specs. This is less common but creates a dramatic effect on feature walls where the shelf is the centerpiece rather than background.
The Channel Specs You Need Before Ordering
The channel is cut to your exact dimensions, which means you need to know your LED strip specs before you place the order. A channel routed to the wrong width or depth means the strip won't seat properly, and that's not something that can be fixed after the fact.
Here's what I need from you:
Channel width should match the width of your LED strip. If you're using a diffuser profile (the aluminum channel that snaps over the strip and diffuses the light), send me the diffuser dimensions instead of the strip dimensions. The channel needs to fit the diffuser, not just the strip inside it.
Channel depth should accommodate the strip height plus the diffuser if you're using one. Too shallow and the diffuser sits proud of the shelf surface. Too deep and you're wasting material for no reason.
Channel position is the distance from the front or back edge of the shelf. There's no default position because every setup is different. Tell me where you want it and I'll route it there. The constraint: the channel needs to stay at least 1-1/2" from the back edge and 1" from each side. Everything within those boundaries is open.
Wire hole location is a 3/8" hole drilled through the back of the shelf so your wiring exits cleanly behind the shelf and into the wall. You can specify left, right, or center.
If you're not sure about any of this, email me at ben@shelfexpression.net before ordering. It's easier to get the specs right in a five-minute conversation than to guess and hope.
What the $50 Fee Covers
The $50 is a flat custom fee per shelf. It covers the channel routing (one or two channels), the wire hole, and any custom edge profile work if you're adding that too. The fee is the same regardless of shelf size, species, or channel complexity. A 12" shelf with one channel costs the same $50 as a 72" shelf with two channels.
You supply your own LED strips and any diffuser hardware. I build the shelf with the channel routed to your specs; you handle the electronics after it arrives.
How Wood Species Interacts With LED Lighting
All seven species are available with LED routing. The process is identical regardless of species, so this is purely an aesthetic decision. But species does affect how the light reads in the room.
Dark walnut shelves create the most contrast with LED lighting. The dark grain absorbs light at the edges and makes the channel read as a clean, sharp line. If you're going for dramatic and design-forward, walnut with a bottom channel is hard to beat.
White oak floating shelves reflect more light, giving the shelf a warmer, more diffused quality. The ray fleck in the grain picks up LED color at certain angles in a way that adds visual texture you don't get with smoother species.
Maple floating shelves are the lightest species in the lineup and reflect the most light. If maximum brightness from the LED strip is the goal rather than contrast, maple is the pick.
Cherry wood shelves develop an amber patina over time that interacts particularly well with warm white LEDs. The wood gets richer as it ages, so the lighting effect actually improves over the life of the shelf.
A live edge shelf with a bottom channel creates one of the more striking effects available: organic edge lit from below. It's a statement piece.
For painted finishes, white floating shelves with LED create a clean, minimal look. Black floating shelves with LED create high contrast. Both work well depending on the room.
Not sure which direction fits your space? I offer samples so you can see the wood in person before committing.
Where Lit Shelves Make the Most Impact

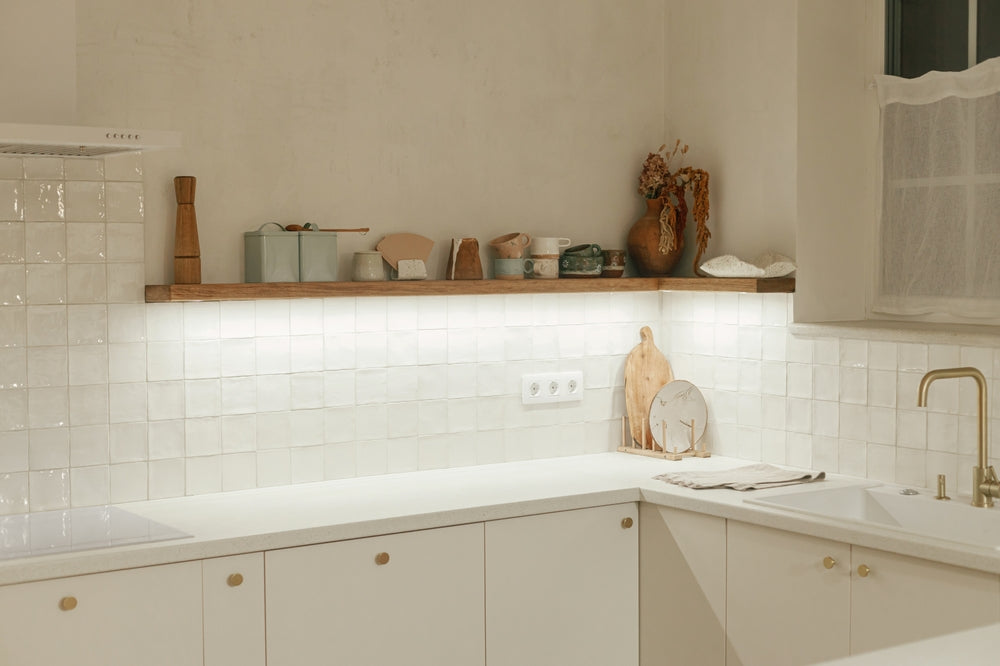

Kitchen: This is one of the strongest use cases. A bottom-channel LED shelf replacing upper cabinets with kitchen open shelving above a counter delivers task lighting with the added benefit of open display on top. It replaces a traditional under-cabinet light fixture and looks better doing it.
Bar: Bottom-channel lighting on floating shelves for a bar holding glassware and bottles creates the backlit bar effect without requiring a full back bar build. If you've ever admired the lit shelves behind a cocktail bar and wanted that at home, this is how you get it.
Living room: Up-lit shelves on a feature wall create ambient lighting that works alongside overhead fixtures rather than replacing them. A set of living room floating shelves at staggered heights with coordinated channels is both a display solution and a lighting solution.
Bedroom: A shelf with a downward channel above a nightstand or reading area adds functional light without a floor lamp or ceiling fixture. Floating shelves above bed with down lighting double as reading lights with a cleaner look than a clip-on lamp.
Entertainment walls: Shelves flanking a TV with soft LED lighting reduce the eye strain caused by a bright screen against a dark wall. The light softens the contrast and makes the whole wall feel intentional.
Sizing Considerations for LED Shelves
Sizing works the same as any other custom floating shelf: made to order between 12" and 72" long and 6" to 12" deep. A few things specific to lit shelves:
Length affects how many LED strips you need and whether you're running a continuous strip or multiple segments. Shelves at 48" and above typically require planning the strip layout in advance, which is another reason to have your LED specs ready before ordering.
Depth affects how light distributes. A 6" deep shelf with a bottom channel creates a tighter, more focused band of light on the surface below. A 12" deep shelf with a top channel throws light higher up the wall and produces a broader, more diffused wash. Neither is objectively better; it depends on the effect you're after. The floating shelf depth guide covers depth considerations across all applications.
Multiple shelves with coordinated channel positions create a cohesive installation. If you're ordering a set at matching or staggered heights, include all the specs together so the routing is consistent across the set.
Before You Order
Get your LED strip or diffuser profile dimensions first. That's the single most important step. Once you have those numbers, you can either include them in the order notes on the cart page or email me at ben@shelfexpression.net to talk through the specs before placing the order. For anything unusual or complex, reaching out first is the better call.
Browse the full floating shelves with lights collection to see what's available. Any species, any size, $50 flat for the routing. Built to your specs in Charlotte, NC.
